If you are sourcing steel bars for machining, structural work or precision components, you have probably seen two terms on supplier quotes: cold drawn and hot rolled. They are both carbon steel bars, but the difference in dimensional accuracy, surface finish and machining cost is significant. Choosing the wrong one means either paying for precision you do not need, or wasting money on secondary processing you could have avoided.
This guide explains the practical differences between cold drawn and hot rolled steel, with real numbers and a simple decision framework for buyers.
Hot rolling is the first forming step. Steel billets are heated above 1,000°C and passed through rollers while still red-hot. The steel deforms easily at this temperature, so mills can produce large sections economically.
Typical characteristics of hot rolled bar:
Dimensional tolerance: ±0.5 mm to ±1.5 mm depending on size. For a 50 mm bar, the actual diameter could be anywhere between 49.2 mm and 50.8 mm.
Surface: Dark, scaly, oxidized. It looks grey-black and rough to the touch.
Straightness: Typically 3–5 mm/m. The bar may curve slightly along its length.
Cost: Lower. Hot rolling is a high-volume, low-cost process.
Size range: Very wide. Round bars from Ø12 mm up to 500 mm and beyond.
Hot rolled bar is usually sold in 6-meter random lengths. It is the starting material for almost every steel product on the market.
Cold drawing is a secondary process that takes hot rolled bar and pulls it through a tungsten carbide die at room temperature. The die is slightly smaller than the incoming bar, so the steel is physically squeezed down to a precise size.
Typical characteristics of cold drawn bar:
Dimensional tolerance: h9 or h11 per EN 10278. For a 50 mm bar, the tolerance is roughly ±0.03 mm to ±0.08 mm — roughly 10 times tighter than hot rolled.
Surface: Bright, smooth, oxide-free. Ra typically 0.8–1.6 µm. No need to descale before machining or plating.
Straightness: ≤0.5 mm/m. The bar runs straight through automatic machining centers.
Cost: 15–40% higher than hot rolled, depending on size and grade.
Size range: More limited. Our factory produces cold drawn round bar from Ø5 mm to Ø100 mm, square bar from 4×4 mm to 120×120 mm, flat bar from 20×3 mm to 200×40 mm, and hexagonal bar from S6 to S100.
The cold drawing work also work-hardens the surface layer, increasing yield strength by roughly 10–20% compared to the hot rolled feedstock.

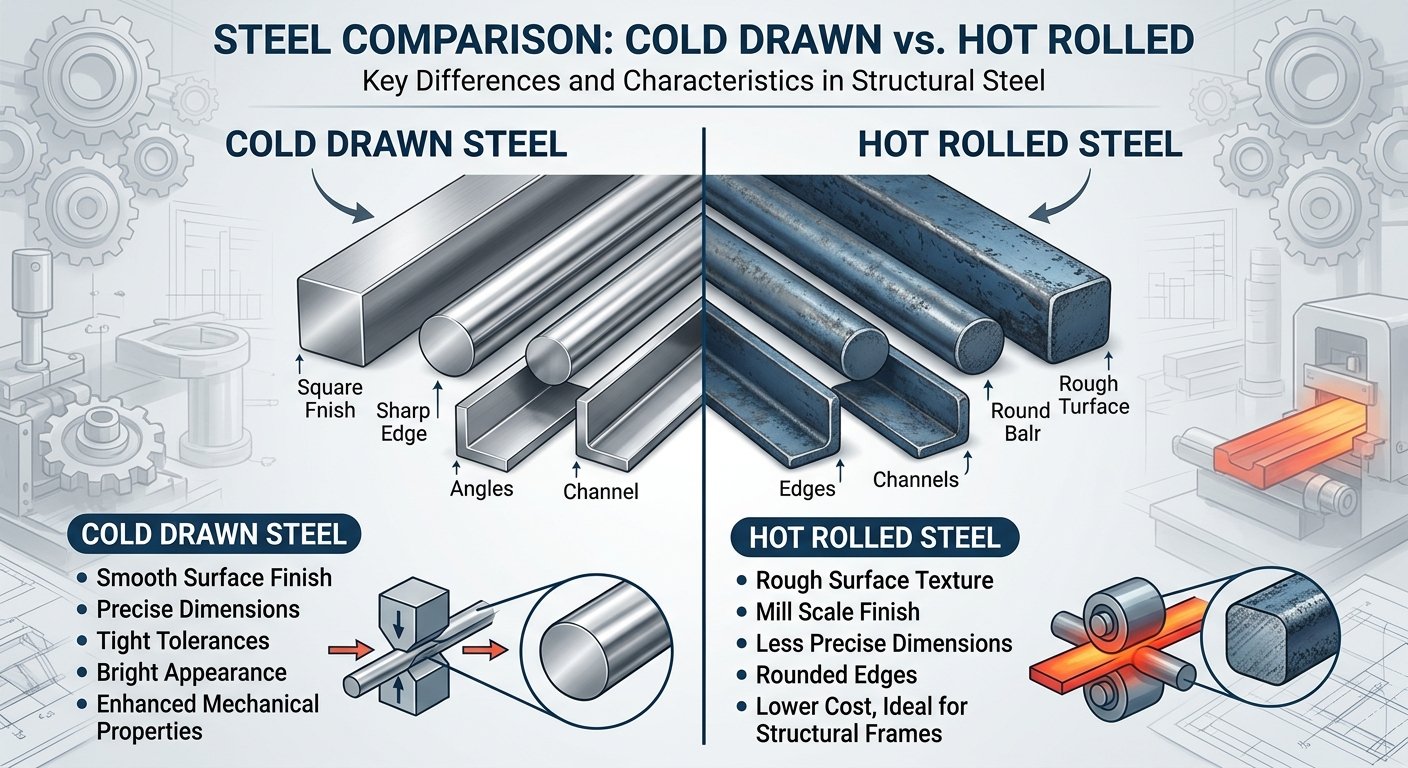

| Parameter | Hot Rolled | Cold Drawn |
|---|---|---|
| Tolerance (Ø50 mm round) | ±0.5–1.5 mm | ±0.03–0.08 mm (h9/h11) |
| Surface | Dark, scaly, oxidized | Bright, smooth, oxide-free |
| Straightness | 3–5 mm/m | ≤0.5 mm/m |
| Machining allowance needed | 1–3 mm per side | 0.2–0.5 mm per side |
| Surface weld prep required | Yes (grind or shot blast) | No |
| Price level | Baseline | +15–40% |
| Available as cut-to-length? | Usually not directly | Yes, 50–6,000 mm |
Hot rolled is the right choice when precision does not matter and you want the lowest material cost.
Typical hot rolled applications:
Structural beams, columns and building frames where tolerance is not critical
Heavy welding fabrication where the bar will be ground or machined anyway
Large-diameter shafts that will be fully turned on a lathe
Temporary structures, jigs, frames where surface finish is irrelevant
Price-sensitive projects where 1–3 mm of machining allowance is acceptable
If your part requires 5 mm or more of machining stock on every side, hot rolled bar plus turning is usually cheaper than buying cold drawn bar.
Cold drawn pays for itself when you can skip processing steps.
Typical cold drawn applications:
CNC turned parts where 0.2 mm of stock is enough — less machining time, higher tool life
Parts that go straight into assembly without machining (spacers, pins, guide rails)
Plating or coating jobs that require a clean, oxide-free surface
Automation lines and machining centers that feed bar automatically — crooked hot rolled bar jams the feeder
Precision shafts, bushings, gears and hydraulic components
Export orders where consistent dimensions matter and incoming inspection costs add up
For example, a customer machining 100,000 pins per month from Ø20 mm bar: hot rolled needs 1 mm turned off each side; cold drawn needs 0.2 mm. The machine cycle time drops, tool wear drops, and the scrap rate from out-of-round material drops. The 20% higher material cost is recovered in machining savings within weeks.
For most carbon steel grades (Q235, Q355, C45), cold drawn and hot rolled bar of the same grade have similar tensile and yield strength. The difference is that cold drawn bar has:
Slightly higher yield strength (10–20% from work hardening)
Slightly lower ductility (elongation drops by a few percent)
Better surface hardness for wear applications
If your design relies on heat treatment (quenching and tempering), the cold work effect disappears after 600°C, and the final properties depend entirely on the heat treatment. For heat-treated parts like 42CrMo4 or 4140 shafts, choose cold drawn mainly for dimensional accuracy, not for strength.
Buyers often compare only the per-ton price. The full cost of a machined part includes:
Material cost
Machining time
Tool wear
Scrap rate
Descaling or surface prep
Inspection time
Cold drawn bar costs more per ton, but items 2–6 are usually lower. For high-volume CNC production, cold drawn almost always wins on total cost. For one-off welding fabrication, hot rolled is cheaper.
Ask yourself these questions:
Does the part need machining? If yes, how much stock? More than 1 mm per side → hot rolled. Less than 0.5 mm → cold drawn.
Does it go into plating or coating? Yes → cold drawn (no descaling needed).
Is it fed automatically into a machine? Yes → cold drawn (straightness matters).
Is the size over Ø100 mm? Then cold drawing is not available; hot rolled plus turning is your only option.
Is surface appearance part of the product? Yes → cold drawn.
If you have decided cold drawn is right for your application, the next step is finding a manufacturer that can hold the tolerances you need.
At Suzhou Zhenfu Cold-Drawn Steel Co., Ltd., we produce cold drawn round, square, flat, hexagonal and special-shaped profiles for 18+ years. Our standard tolerance is h9/h11 per EN 10278, straightness ≤0.5 mm/m, and every shipment comes with an EN 10204 3.1 mill test certificate.
Explore our product range:
For more on tolerance requirements, read our guide to cold drawn steel tolerances and RFQ preparation.
Send us your drawing or size list, and we will confirm feasibility and price within 24 hours.
