Cold drawn steel is widely used when manufacturers need more controlled dimensions, better surface condition, and consistent profiles than conventional hot-rolled steel can typically provide.
But saying that a bar is "precision" or "cold drawn" is not enough when you are placing an industrial order.
If your component drawing requires a specific diameter, width, thickness, straightness, or surface finish, those requirements need to be clearly defined in the purchasing specification. Otherwise, two suppliers may interpret the same inquiry differently, even when they are both supplying cold drawn steel.
This guide explains how to specify cold drawn steel tolerances, how tolerance classes such as h9, h10 and h11 work, how common standards such as EN 10277, ASTM A108 and GB/T 3078 fit into the purchasing process, and what information should be included in your next RFQ.
A dimensional tolerance defines the permitted variation between the nominal dimension specified by the buyer and the actual dimension of the supplied steel.
For example, if a drawing specifies a nominal diameter of 20 mm, the actual diameter will not normally be exactly 20.000 mm at every measurement point. The applicable tolerance defines the acceptable range.
For industrial buyers, tolerance affects several practical factors:
Component fit
Machining allowance
Production consistency
Tool setup
Automated feeding
Assembly
Scrap and rejection rates
Overall manufacturing cost
A tighter tolerance can be valuable when the steel is used directly as precision machining stock or when subsequent machining needs to be minimized.
However, tighter is not automatically better.
A tolerance should be selected according to the actual component requirement. Specifying unnecessarily tight tolerances can increase production cost without providing a corresponding manufacturing benefit.
The main reason buyers specify cold drawn steel is often greater dimensional control.
For example, a manufacturer producing large quantities of CNC-machined components may benefit from receiving steel with consistent dimensions from batch to batch. More predictable incoming material can make machining setups more stable and reduce unnecessary material removal.
Tolerance becomes particularly important when steel is used for:
CNC-machined components
Hydraulic components
Automotive parts
Elevator components
Machine tool components
Automation equipment
Precision shafts
Pins and bushings
Fasteners
Industrial machinery
For high-volume production, even a small difference in incoming material dimensions can influence machining time, tool wear, material utilization, and rejection rates.
The important question is therefore not simply:
"Can the supplier produce h9?"
A better question is:
Can the agreed tolerance be maintained consistently across the required size, grade, production batch and order quantity?
That is the information a serious industrial buyer should confirm before placing a large order.
There is no single global standard that covers every cold drawn steel product and market.
The applicable specification depends on the steel grade, product shape, manufacturing route, destination market, and customer requirements.
Three standards that buyers may commonly encounter are EN 10277, ASTM A108 and GB/T 3078.
EN 10277 is an important European reference for bright steel products, including cold drawn products.
It covers specified steel grades and requirements for bright steel products, with dimensional tolerances and other requirements depending on the relevant product and specification.
European buyers may therefore specify an EN standard together with the required steel grade, product dimensions, delivery condition, and tolerance requirements.
For example, a purchasing specification may identify:
Steel grade
Product shape and size
Delivery condition
Dimensional tolerance
Surface condition
Inspection documentation
The exact requirement should always be confirmed against the applicable edition and part of the standard.
ASTM A108 covers steel bars, carbon and alloy, cold-finished.
This is important because "cold-finished" is broader than simply "cold drawn." Cold-finished products can include different processing routes, such as cold drawing, depending on the product and specification.
ASTM A108 is commonly encountered in North American supply chains and covers a range of carbon and alloy steel grades.
When purchasing to ASTM requirements, buyers should specify the exact grade, size, product form, tolerance and any additional requirements rather than relying on the phrase "ASTM A108" alone.
GB/T 3078 is a Chinese standard for quality structural steel cold drawn bars.
It is frequently encountered when sourcing cold drawn steel from Chinese manufacturers and may cover grades commonly used in domestic and export supply chains.
For Chinese-origin material, buyers may see GB/T specifications on quotations, production documents, or material certificates.
If your finished component is designed to an EN or ASTM requirement, do not assume that a GB/T grade is automatically equivalent. Confirm the chemical composition, mechanical properties, delivery condition, dimensional requirements, and applicable equivalence with your engineering or purchasing team.
One of the most important concepts in steel purchasing is understanding that a product standard and a tolerance class are not the same thing.
A product standard may define:
Steel grades
Chemical composition
Mechanical properties
Delivery conditions
Product requirements
Inspection requirements
Dimensional requirements
A tolerance class defines the permitted dimensional deviation according to the applicable tolerance system.
For example:
Product specification
C45 / EN 10277
Dimensional requirement
Ø20 mm, h9
These two pieces of information work together.
A complete purchase specification should not normally rely on "h9" alone. The buyer should identify the applicable product standard, steel grade, nominal dimensions, tolerance system, and any additional requirements needed for the application.
Tolerance classes such as h9, h10 and h11 are commonly used for dimensional tolerances in precision engineering.
Under the ISO system, the letter identifies the position of the tolerance zone, while the number indicates the tolerance grade.
For a shaft-type dimension using an h tolerance:
The upper deviation is positioned at the nominal dimension.
The tolerance zone extends below the nominal dimension.
A smaller tolerance grade number represents a tighter tolerance zone.
Therefore, in general terms:
h9 is tighter than h10, and h10 is tighter than h11.
However, the actual numerical tolerance depends on the nominal size range and the applicable tolerance table.
This is why a buyer should not treat "h9" as a universal fixed number such as ±0.05 mm.
For a nominal diameter such as Ø20 mm, the actual h9 deviation must be taken from the applicable tolerance table for the relevant nominal-size range.
When preparing an RFQ, it is better to write:
Ø20 mm, h9
than to write:
Ø20 mm, precision tolerance
The first specification provides an objective dimensional requirement that the supplier can quote and verify.
For critical applications, buyers can also specify their own upper and lower dimensional limits directly on the drawing.
Tolerance requirements also depend on the shape of the steel.
For round steel, the primary dimensional requirement is normally the outside diameter.
For example:
Cold drawn round steel, Ø20 mm, h9
The supplier and buyer should also agree on the applicable standard, measuring method, straightness, surface condition and length requirements where relevant.
Square steel has multiple dimensional characteristics, including:
Width
Height
Corner geometry
Straightness
The tolerance requirement should clearly identify the relevant dimensions.
Hexagonal steel is normally dimensioned by the distance across flats rather than across the corners.
Therefore, buyers should confirm exactly how the nominal dimension is defined on the drawing or applicable standard.
Flat steel is particularly important because width and thickness are separate dimensions.
For example:
40 × 10 mm flat steel
does not provide enough information if the application requires controlled dimensions.
A more complete specification might be:
40 × 10 mm cold drawn flat steel, width tolerance: specified requirement, thickness tolerance: specified requirement
The actual tolerance should be based on the applicable standard or customer drawing.
This is particularly relevant for applications such as elevator components, machine parts, fixtures, and precision structural components.
Tolerance and machining allowance are often confused during purchasing, but they describe different things.
Tolerance defines the permitted variation in the supplied dimension.
Machining allowance is the additional material intentionally left so that a subsequent process can remove it.
For example, a manufacturer may require steel that will later be:
Turned
Milled
Ground
Polished
Plated
A cold drawn bar may already be close to the final machining dimension, reducing the amount of material that needs to be removed.
However, the required machining allowance depends on the component design and downstream process.
Therefore, a buyer should not assume:
"h9 automatically means there is enough stock for grinding."
The dimensional tolerance and machining allowance should be considered separately.
For critical components, both should be defined on the drawing or purchasing specification.
Dimensional accuracy is only one part of a precision steel specification.
Surface condition may also matter when the steel is used for:
Hydraulic components
Piston rods
Sliding components
Plated parts
Precision shafts
Grinding operations
Decorative or exposed components
Cold drawing can provide a controlled and generally improved surface condition compared with many hot-rolled products, but it should not automatically be interpreted as a specific Ra value.
Surface roughness depends on factors such as:
Steel grade
Original surface condition
Die condition
Lubrication
Drawing reduction
Processing route
Measurement method
If surface roughness is critical, specify the required maximum Ra value and measurement method rather than simply writing "cold drawn surface."
For example:
Surface roughness: Ra ≤ [specified value], measured according to the agreed method.
This makes the requirement measurable and easier for both supplier and buyer to verify.
Straightness is another requirement that should not be overlooked.
For long bars, excessive deviation from straightness can affect:
CNC feeding
Automatic handling
Grinding
Assembly
Guide rail installation
Cutting accuracy
Subsequent machining
Straightness requirements vary according to product shape, dimensions, length, applicable standard and supplier capability.
If straightness is important to your application, specify a maximum permitted deviation in the RFQ or drawing.
The same principle applies to length.
Instead of simply writing:
Length: 3000 mm
specify the required condition, for example:
Fixed length: 3000 mm ± [specified tolerance]
The exact length tolerance should be agreed according to the product, cutting process, applicable standard and customer requirements.
A good cold drawn steel RFQ does not need to be complicated.
It needs to contain enough information for the supplier to understand exactly what is being purchased.
At minimum, consider specifying the following:
| Requirement | What to Specify |
|---|---|
| Product shape | Round, square, flat, hexagonal or special section |
| Nominal size | Diameter or cross-sectional dimensions |
| Steel grade | C45, 1045, 40Cr, S355J2, etc. |
| Product standard | EN, ASTM, GB/T or another applicable standard |
| Dimensional tolerance | h9, h10, h11 or specific upper/lower limits |
| Surface condition | Cold drawn, ground, polished, etc. |
| Surface roughness | Maximum Ra if required |
| Straightness | Maximum permitted deviation if critical |
| Length | Random or fixed length |
| Length tolerance | Required deviation for fixed lengths |
| Quantity | Tons, pieces or bundles |
| Inspection | MTC, third-party inspection, testing requirements |
| Packaging | Export packaging, anti-rust protection, bundles, etc. |
This information gives suppliers a much clearer basis for quotation and production.
For example, an industrial buyer could structure an inquiry like this:
Product: Cold Drawn Round Steel Bar Grade: C45 Standard: EN 10277 Size: Ø20 mm Tolerance: h9 Length: 3000 mm fixed length Straightness: As specified on drawing Surface: Cold drawn, suitable for subsequent machining Inspection: Mill Test Certificate required Quantity: 20 MT Packing: Export seaworthy packing
For a more demanding application, the buyer could attach a component drawing and identify:
Finished component dimensions
Required steel condition
Machining allowance
Surface roughness
Straightness
Heat treatment
Inspection points
Applicable standards
This is significantly clearer than simply writing:
"20 mm cold drawn round steel, h9."
The more clearly the requirements are defined, the easier it is for different suppliers to quote on the same technical basis.
Several purchasing mistakes appear repeatedly in cold drawn steel orders.
"h9" defines a tolerance class, but it does not identify the steel grade, product standard, delivery condition, or other purchasing requirements.
Round, square, flat and hexagonal steel have different dimensional characteristics.
Flat steel, for example, has separate width and thickness dimensions.
A tight dimensional tolerance does not automatically mean that the supplied bar contains the machining stock required for a later grinding or turning operation.
A bar can meet its dimensional tolerance while still requiring a separate straightness requirement for a demanding application.
A product can meet its dimensional tolerance but still fail a customer's surface-quality requirement.

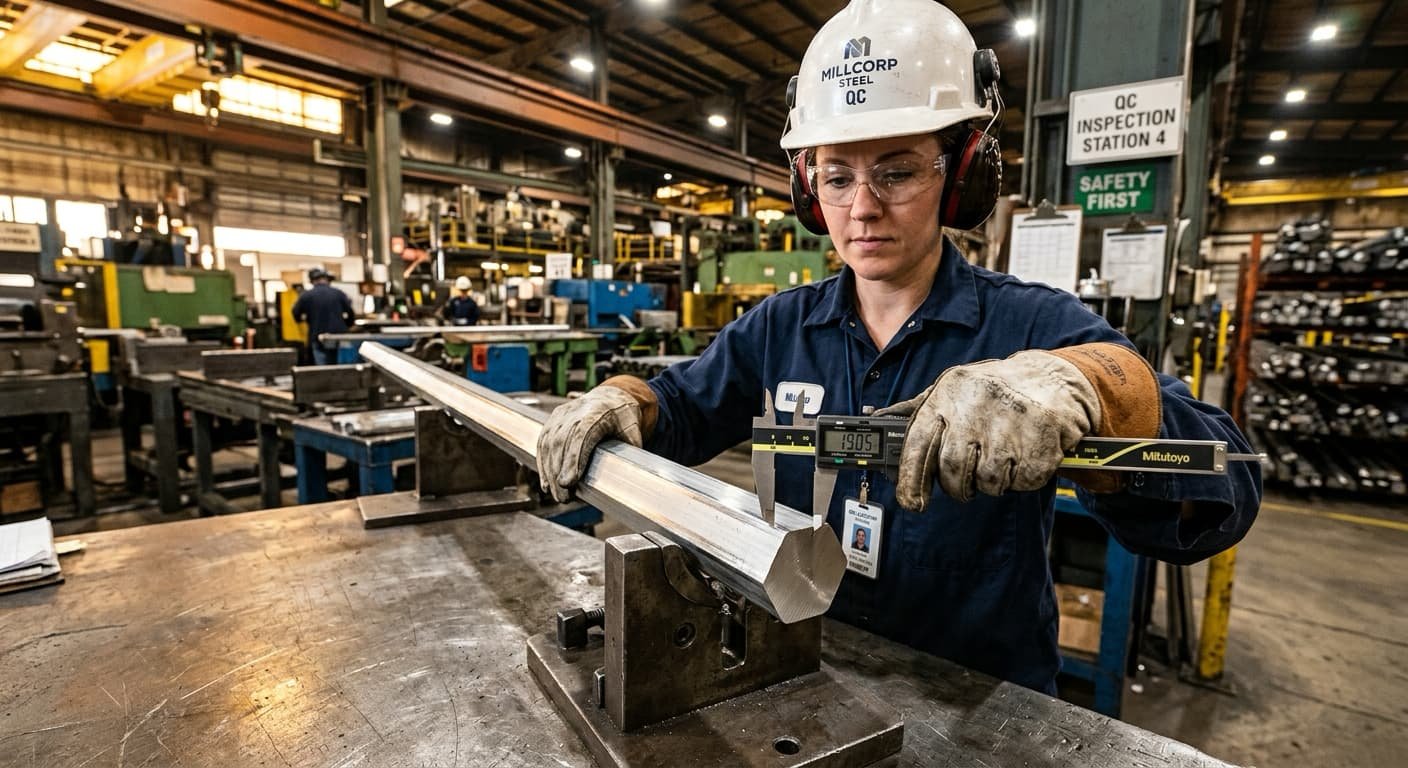

For critical dimensions, buyers should agree with the supplier how measurements are taken and recorded.
This is especially important when the specification is close to the limit of the required tolerance.
Tighter tolerances may require additional processing, more inspection, special tooling, or reduced production efficiency.
If the component does not need h9, there may be little manufacturing benefit in paying for h9.
The most economical specification is generally the one that meets the engineering requirement without unnecessarily narrowing the tolerance.

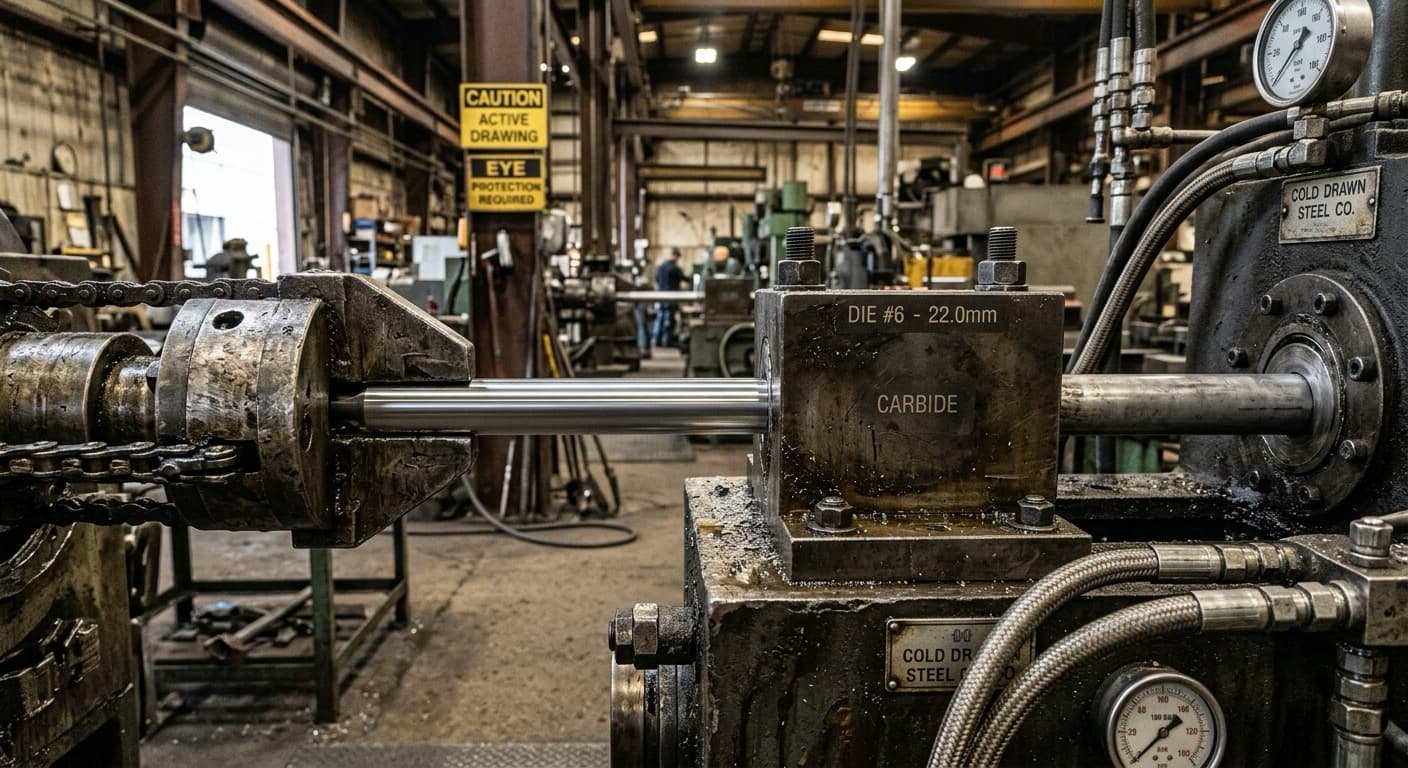

Cold drawing is a controlled process, but the final dimensional result depends on more than simply pulling steel through a die.
Factors that can influence tolerance capability include:
Raw material consistency
Steel grade
Starting dimensions
Drawing reduction
Die design
Die condition
Drawing equipment
Drawing speed
Lubrication
Straightening
Cutting equipment
Measurement equipment
Inspection frequency
Operator and process control
Tooling condition is particularly important for maintaining consistent dimensions during production.
A supplier may be able to produce a small sample within a tight tolerance, but industrial buyers should also consider whether that tolerance can be maintained consistently across the full production quantity.
For large-volume or safety-critical applications, buyers may therefore request:
Sample production
Dimensional inspection reports
Batch inspection records
Material certificates
Third-party inspection
First-article approval
Production samples before mass ordering
Suzhou Zhenfu Cold-Drawn Steel Co., Ltd. has more than 18 years of experience in cold-drawn steel manufacturing.
The company produces:
Cold-drawn round steel
Cold-drawn flat steel
Cold-drawn square steel
Cold-drawn hexagonal steel
For industrial orders, dimensional requirements can be discussed according to customer drawings, applicable standards, steel grades and production requirements.
Quality control can include:
Raw material inspection
Chemical composition verification
Dimensional inspection
Hardness testing
Mechanical testing when required
Straightness inspection
Surface inspection
Precision measurement
Material certificate and heat-number traceability
For customers with specific tolerance requirements, technical specifications can be reviewed before production so that the required dimensions, tolerances, inspection methods and documentation are clearly established.
This is particularly important for customers purchasing cold drawn steel for CNC machining, automotive components, hydraulic equipment, elevators, machinery and other precision applications.
h9 can be available for many cold drawn steel products, but achievable tolerance depends on the nominal size, steel grade, product shape, drawing process, tooling, production quantity and supplier capability. Confirm the required tolerance with the supplier before ordering.
They are different tolerance grades within the ISO tolerance system. For the same nominal size and applicable tolerance system, h9 represents a tighter tolerance zone than h10, while h10 is tighter than h11. The actual numerical deviation depends on the nominal size range and applicable tolerance table.
They are different standards used in different specification systems. EN 10277 covers bright steel products in the European system, while ASTM A108 covers carbon and alloy steel bars in cold-finished condition. Their grades, requirements and dimensional provisions are not automatically interchangeable.
No. Cold drawing generally provides a controlled surface condition, but the actual roughness depends on the material, tooling, processing conditions and measurement method. If Ra is important, specify a maximum value separately.
Yes. Cold drawn steel is commonly used as starting material for turning, milling, drilling, grinding and other machining operations. The required machining allowance should be considered separately from the dimensional tolerance.
Yes. Custom dimensional requirements can be discussed based on the product shape, nominal size, steel grade, production process and customer drawing. For non-standard tolerance requirements, confirm feasibility before placing the order.
If straightness affects machining, feeding, assembly, installation or final component performance, it should be specified explicitly. The required value should be based on the product dimensions, application and applicable standard.
Material certificates and traceability documentation can be supplied according to the agreed order and inspection requirements. Customers can specify documentation requirements during the quotation stage.
If you are sourcing cold drawn steel with controlled dimensional tolerances, provide the following information with your inquiry:
Steel grade
Product standard
Shape
Nominal dimensions
Tolerance class or specific dimensional limits
Surface requirements
Straightness requirements
Fixed or random length
Quantity
Inspection requirements
Packaging requirements
If you have a component drawing, technical specification or existing purchasing standard, send it together with your RFQ.
Suzhou Zhenfu Cold-Drawn Steel Co., Ltd. can review the requirements and discuss a suitable production specification for your application.
Contact us for a quotation on cold drawn round, flat, square, hexagonal or special-section steel.
Experience the outstanding industrial quality of Zhenfu. Our meticulously designed cold-drawn steel can enhance performance in various fields. If you need a customized solution, please contact us and collaborate with Zhenfu.
